AESSEAL® offers a wide range of innovative and modular seal support systems to complement its mechanical seal designs.
We believe we are the only seal auxiliary system supplier to deliver CE certified full assemblies without the use of third-party sources. We manufacture the systems at the AESSEAL Global Technology Centre, which is certified to Module D, B1 and H1 – H1 being the highest level of PED certification.
All of our systems comply with:
- ASME VIII Div.1, 2007, 2008a (welded to ASME IX)
- PED 97/23/EC
- GOST
Reliability Enhancement
Research has proven that the biggest mechanical preventative of mechanical seal failure is the use of effective Seal Support Systems.
This means that no matter how well designed your mechanical seal or bearing systems are, without a reliable Seal Support System there is still the possibility of your mechanical seal failing. The innovative and reliable Seal Support System Range at AESSEAL® gives customers the confidence to remove this root cause of mechanical seal failure.
Information provided by AESSEAL®

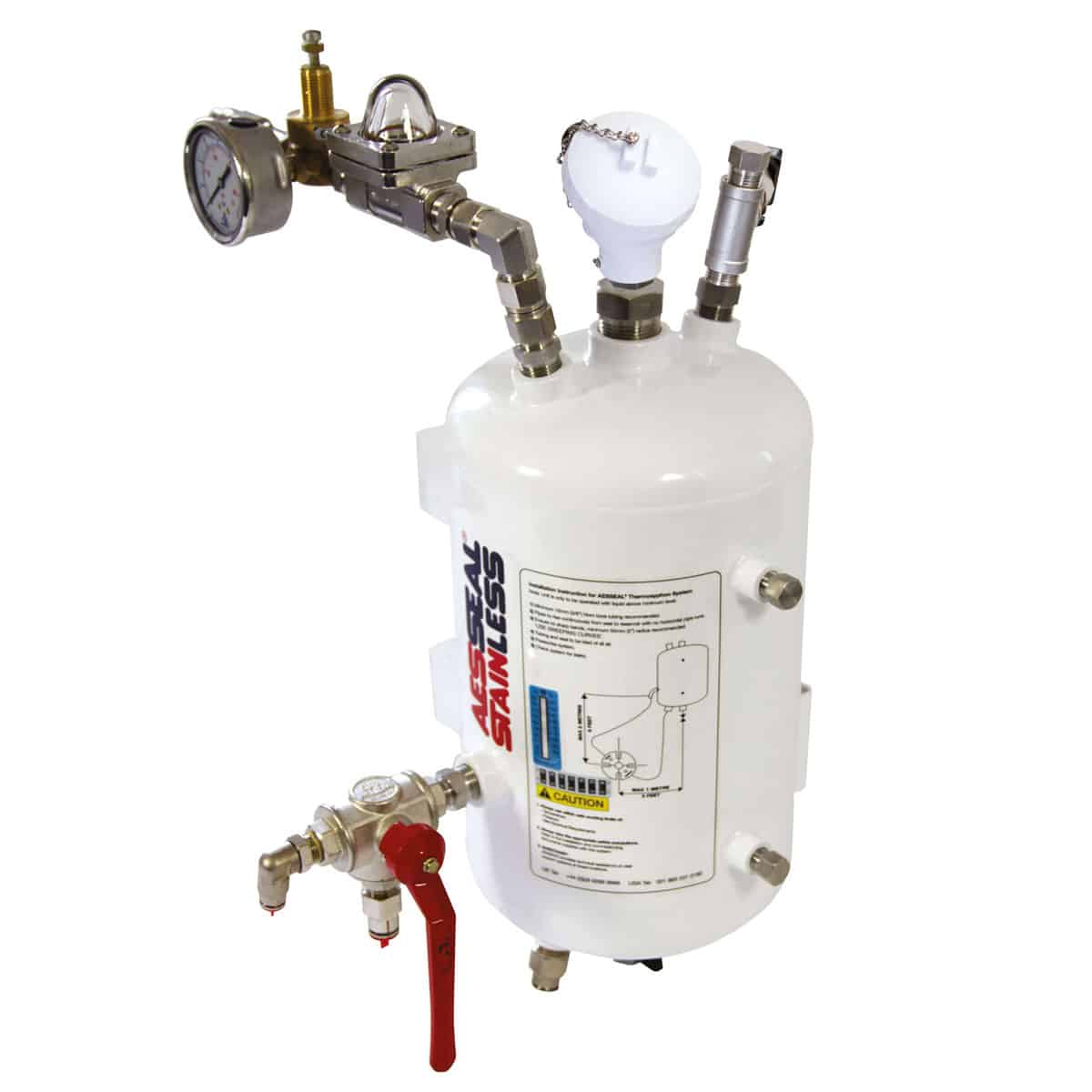

SW2 & SW3
Water Management Systems
The SW Range consists of the SW2 and SW3 Water Management Systems. The environmentally-friendly SW Range Systems connect directly to the plant water line using it as its fluid and pressure source.

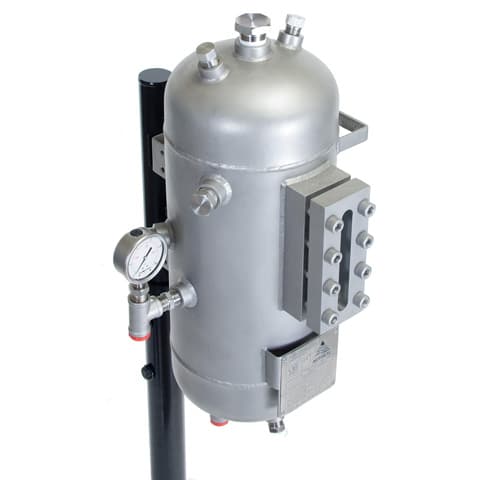

AES-15
Robust, low maintenance and highly reliable
The AES-15 vessel forms the core of a robust, low maintenance and highly reliable Seal Support System.
AES-28
API Vessel
The AES-28 range has a choice of three vessel options, including a screwed connection vessel, a socket welded vessel and a butt welded vessel; All three vessel options are fully compliant with API 682 and can be used on API plans, 51, 52 and 53A.

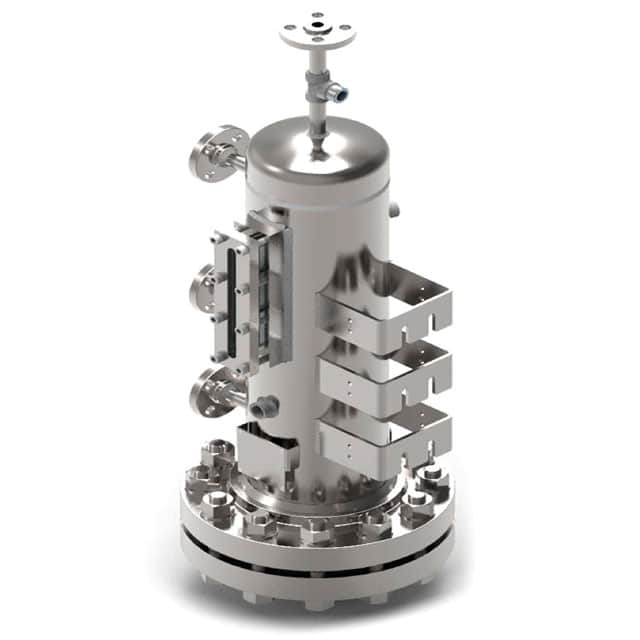

AES-FV
Flanged Vessel
The AES-FV (Flanged Vessel) System is to be used on arduous applications where bacteria build up in the vessel is an issue.
Air Blast Cooler
Additional Air Cooling
The Air Blast Cooler uses a combination of high performance cooling elements and high capacity, compact AC electrically powered fans to give long trouble-free operation in arduous applications.
Compact 107
Innovative API System
The AESSEAL® Compact-107™ operates by generating a localized pressurized barrier fluid circuit.

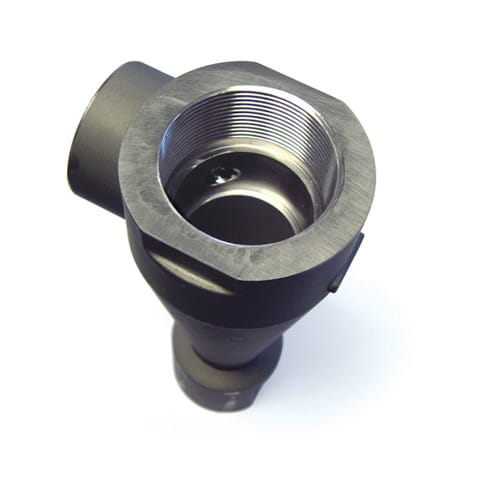

Cyclone Separator
Separate heavy particles from product liquid
The Cyclone Seperator is designed to separate heavy particles from the product liquid. The clean fluid is ideal for use as flush liquid, improving conditions at the seal faces. The separated particles drain back into the sealed product.

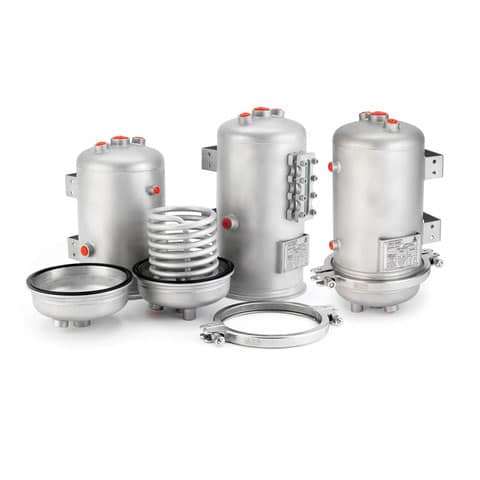

EasyClean
Pressure Systems Designed for the Pharmaceutical, Food & Beverage Sectors
The AESSEAL® EasyClean™ vessel is part of the latest development in water and oil API plan 53a barrier fluid management systems, aimed at environments which require a higher level of hygiene.

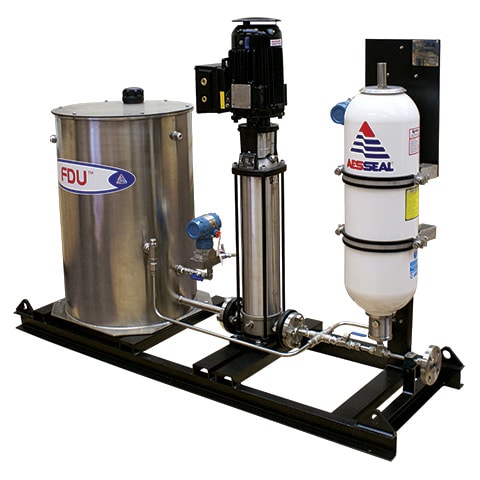

FDU
Fluid Distribution Unit
The AESSEAL FDU (Fluid Distribution Unit) is an efficient and high performance forced circulation PUMPPAC™ system.
Finned Tubing
Additional Cooling
Finned tubing provides additional convection cooling on high heat applications.
FLOWTRUE
Flow Meter
The AESSEAL FLOWTRUE® is a robust and adjustable flow meter that controls the amount of water flowing to the mechanical seal for cooling purposes.
GP-IS
Gas Panel - Intrinsically Safe Area
The Gas Panel System is designed to supply inert gas (e.g. Air or Nitrogen) to mechanical seals on processes that cannot tolerate contamination by water or oil barrier fluids (e.g. mixer applications).

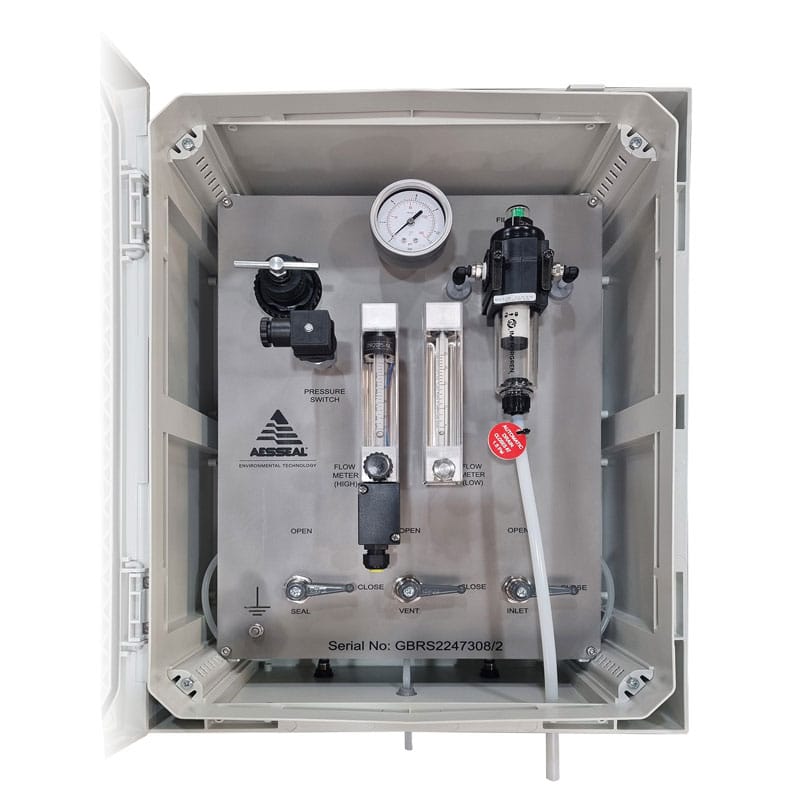

GP-Standard
Gas Panel - Safe Area
The Gas Panel System is designed to supply inert gas (e.g. Air or Nitrogen) to mechanical seals on processes that cannot tolerate contamination by water or oil barrier fluids (e.g. mixer applications).

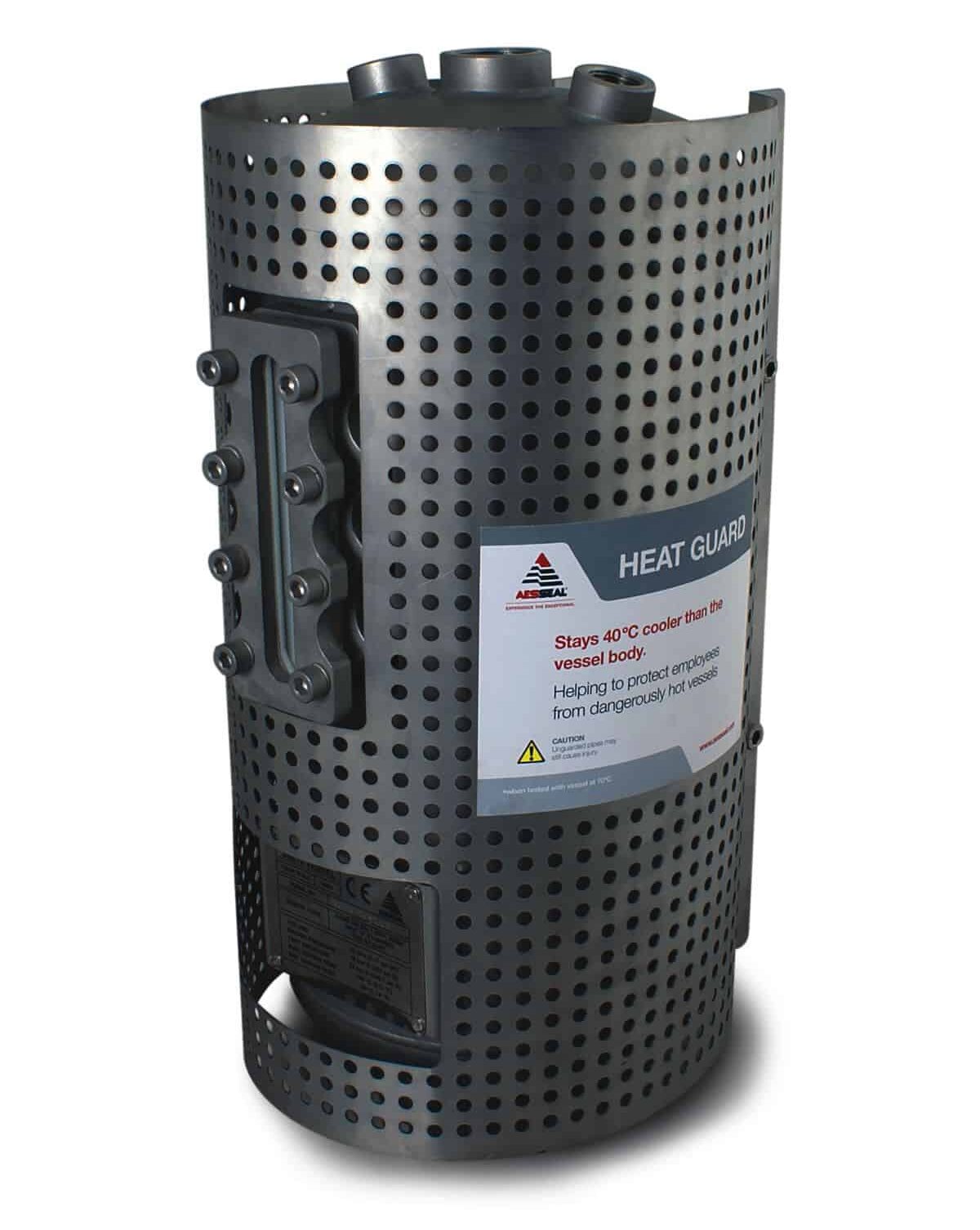

HEAT GUARD
Protection Against Burns From Hot Systems
Industrial applications are hazardous places for personnel to work especially when hot oil seal support vessels are in use.

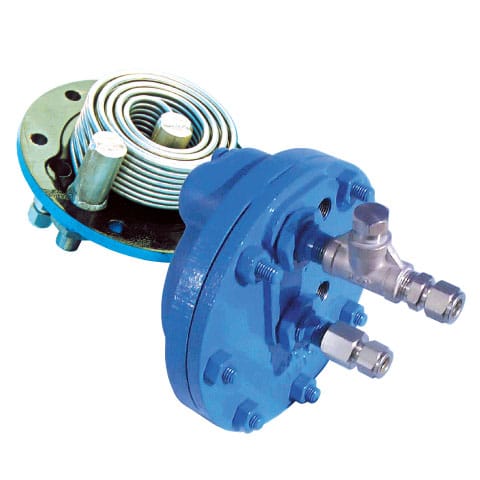

Helicoil Coolers
Helicoil Cooler - Additional Cooling
The AESEAL Cooler is constructed from 316 stainless steel tube and cast iron casing (cast steel & cast 316 steel casting options available).
ICEGUARD
Ideal for applications where water is prone to freeze in and around the seal support system.
ICEGUARD continually senses the temperature of the water inside the seal support system. The flow generated prevents the liquid inside the system from freezing.

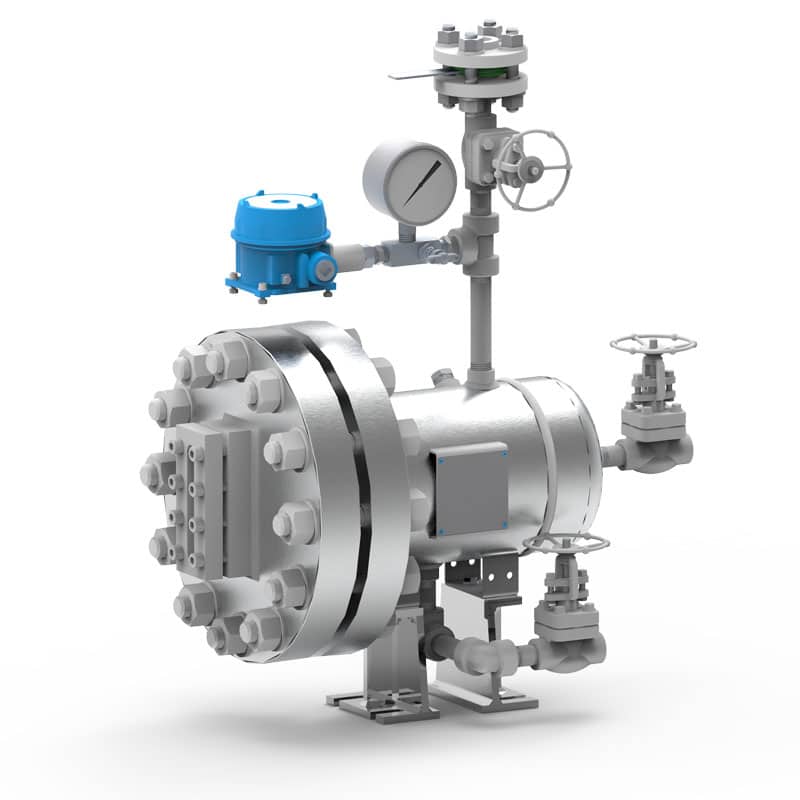

LDU
Leakage Detection Unit (API-Plan 75, 76)
In API Plan 75 & 76 arrangements, vapour leakage from the inboard seal of a dual containment seal, either contacting or non-contacting design, is directed to a vapour recovery system via a vent connection.
LDV
Leakage Detection Vessel (API Plan 65)
In API Plan 65 arrangements, leakage from the seal faces is collected via a drain port and directed to a liquid-collections system via a vessel equipped with a high-level alarm.
Plan 53B system
The AESSEAL® Seal Auxiliary Systems Division has established a pioneering method of developing API Plan 53B Systems.
Plan 53B systems have been viewed as an “engineering challenge” around the world, often with long lead times. The innovative modular concept permits 12 modular options to be applied to create an API 53B System for any application.

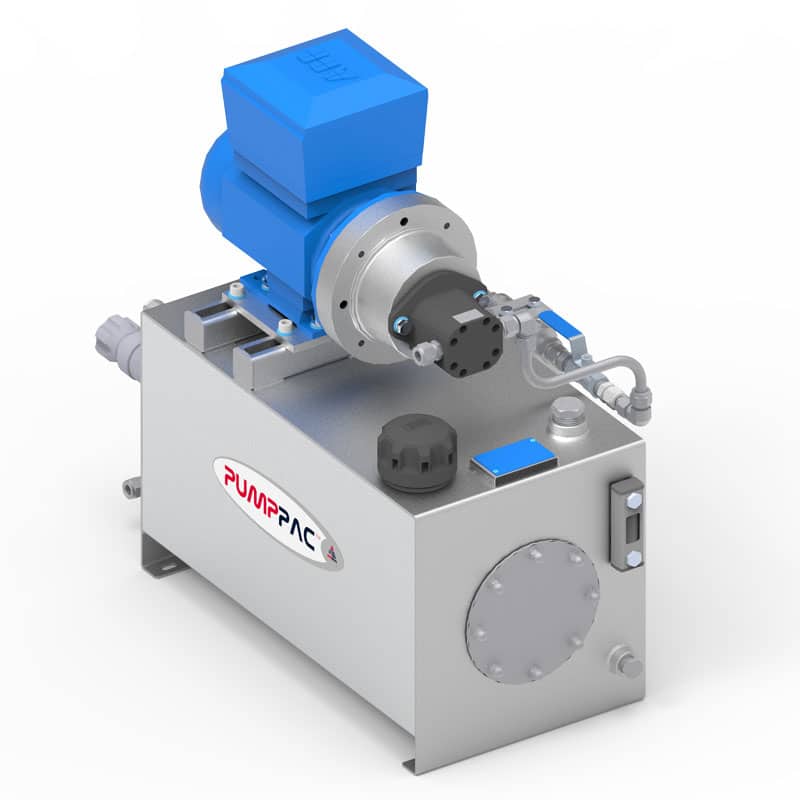

PP-O1
PUMPPAC - API Plan 54 Forced Oil Circulation System
AESSEAL® PUMPPAC™ Systems are used when the heat dissipation from a thermosyphon system is not sufficient for the application.

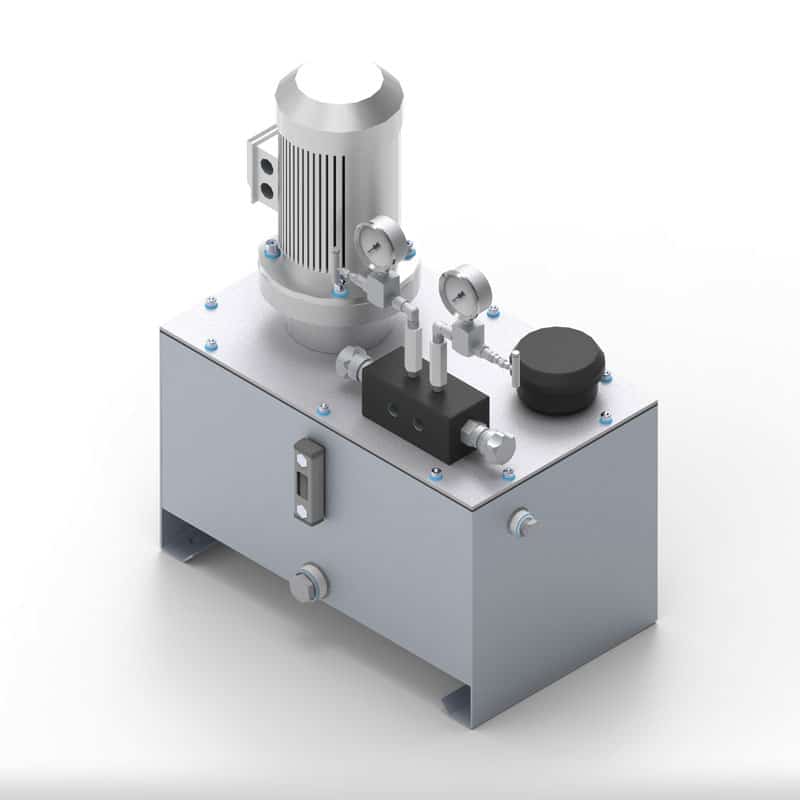

PP-SOU
Oil PUMPPAC System
The PP/SOU (Special Oil Unit) utilizes the same operating principle as the standard AESSEAL® PP/O1 PUMPPAC.
SMARTTRACK
Maintain a constant differential in process pressure.
Designed to track and maintain a constant differential with fluctuations in process pressure.
SP-Range
Gas Pressurised / Buffer Systems
The AESSEAL® SSE12-P™ and SSE25-P™ robust weld pad vessels are used as the core of a modular Pressure System range.
SWC
Condensate System
The SWC Condensate System is an easily installed, low-cost and low maintenance Seal Support System for use with double mechanical seals on condensate applications.

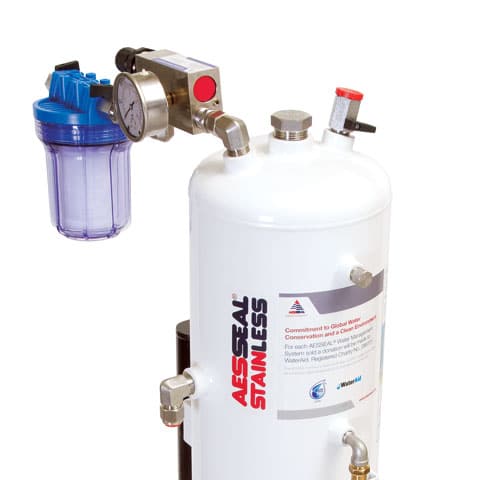

SWFF-TF
Water Management System
The intelligent SWFF-TF System incorporates the patented Flow Fuse and Thermal Fuse products. The Flow Fuse is designed to restrict barrier fluid contamination of the process on momentary or permanent seal failure.

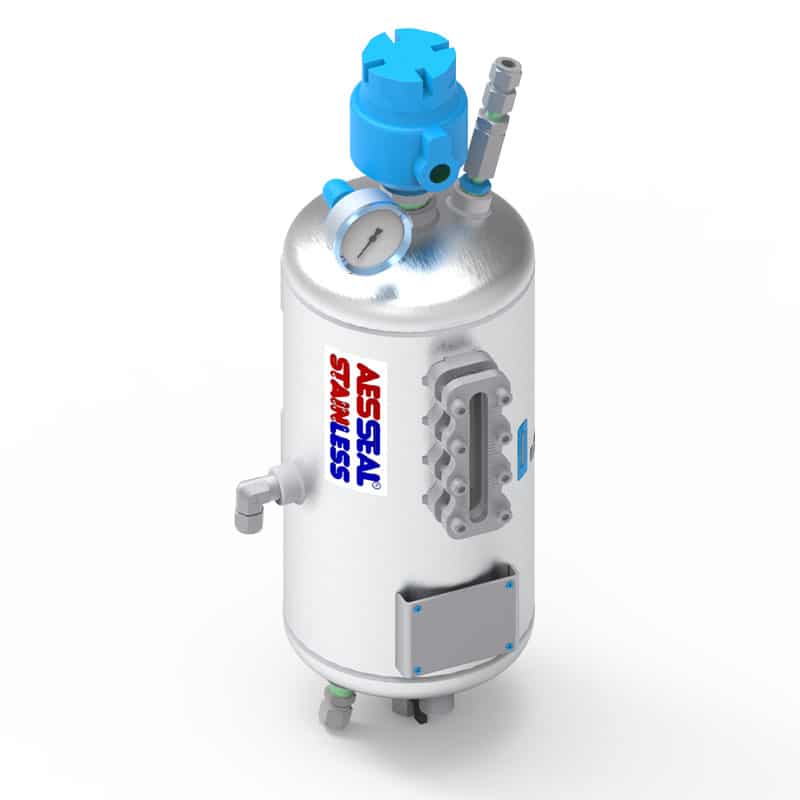

SWM & SWP
Water Management
The AESSEAL® SWM™ (System Water Management) and SWP™ (System Weld Pad) vessels are lower cost alternatives to the SW Range of Water Management Systems.
