Mechanical Seals for any application

We offer a range of standard inventory cartridge mechanical seals, including single and double mechanical seals to suit even the most demanding application and thanks to our modular design system we offer them with the best on-time delivery performance in the industry.

For unusual applications our Standard Plus seal range offers all the benefits of a standard seal while meeting our customer’s specific needs. This covers competitor replacement seals, seals designed for specific pumps and seals designed for pumping specific processes.

Proven Design - Cartridge Construction

Cartridge mechanical seal construction is a proven reliability improvement. The seals are pre-assembled at the factory, pressure tested and shipped as a unit, leading to improved performance as errors due to incorrect installation are reduced. Cartridge construction eliminates the need to measure and set spring compression, and having a mechanical seal pre-assembled means that the seal faces are protected from damage during installation.

Information provided by AESSEAL®

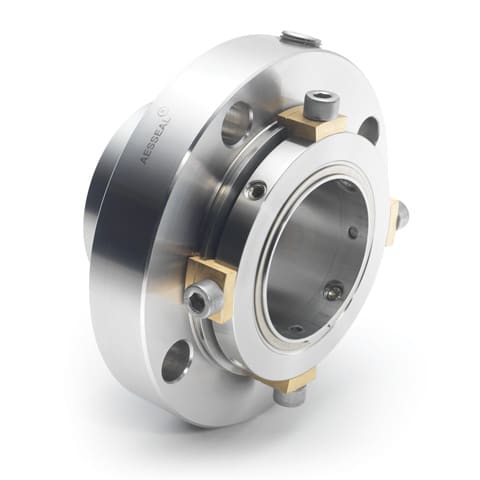

CAPI A, B, C

CAPI A, B, C

Single Mechanical Seal – Oil & Gas

The AESSEAL® API Type A, B and C single-seal range offers the user an unprecedented range of API engineered sealing solutions to suit all application requirements.

Read More

CDSA

CDSA

Cartridge Mounted Double Seal

This modular seal is ideal for the containment of hazardous process fluids.

Read More

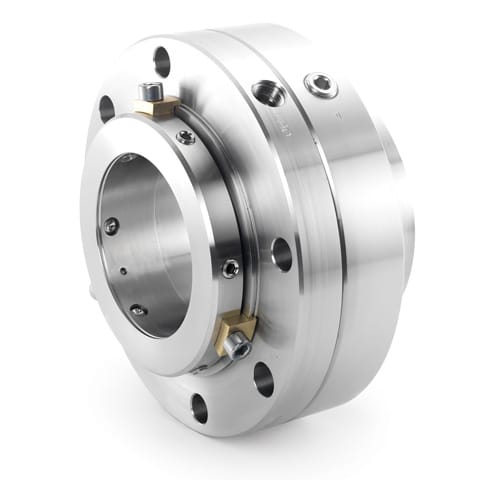

CFFC

CFFC

High Performance Mechanical Seal

The CFFC™ and HPVD™ are dual seals. (The CFC™ and HPVS™ are the single versions.) These robust seals are designed for use on difficult applications, including oil pipeline pumping, water injection and boiler feed duties.

Read More

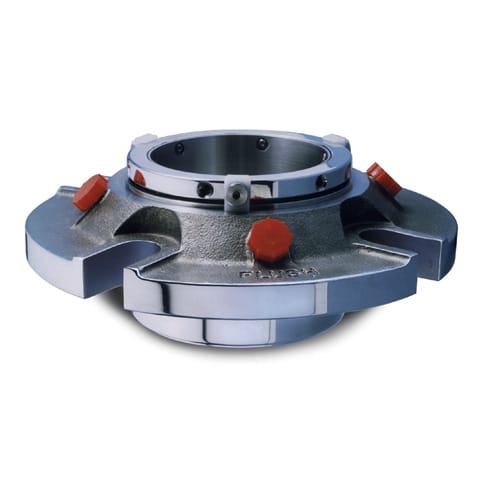

CSM

CSM

Single Mixer Seal

The CSM™ cartridge single seal for mixers is available in a wide range of seal face, elastomer and alloy combinations, to suit individual applications.

Read More

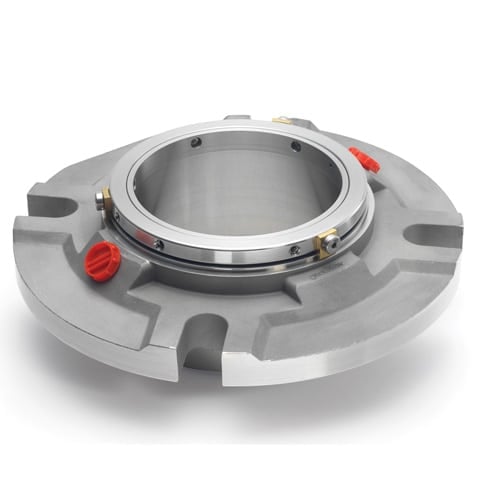

CURC – CRCO – CURE

CURC - CRCO - CURE

Single Mechanical Seal

The AESSEAL CURC™, CRCO™ and CURE™ mechanical seals are part of a range of seals specifically designed to optimize the use of Silicon Carbide.

Read More

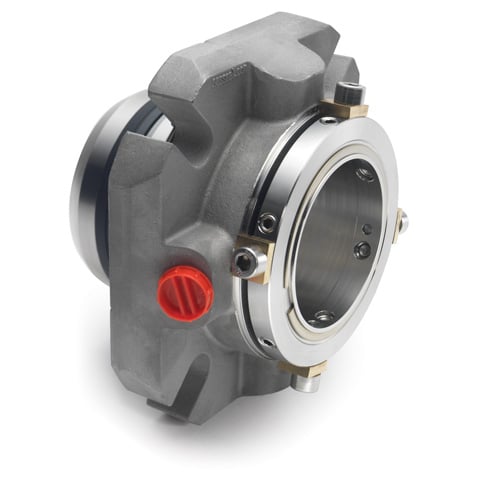

DMSF & DMSC

DMSF & DMSC

Double Monolithic Stationary Flow / Convection

The DMSF™ (Double Monolithic Stationary Flow) range of double mechanical seals has been designed as a high-performance sealing solution for arduous applications.

Read More

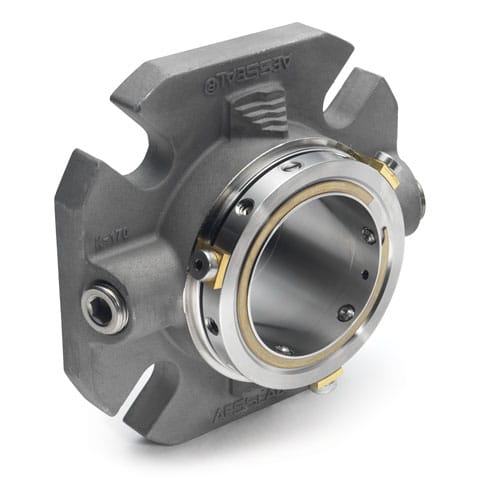

SMSS

SMSS

Single Cartridge Seal

A single cartridge stationary seal with modular monolithic seal faces.

Read More

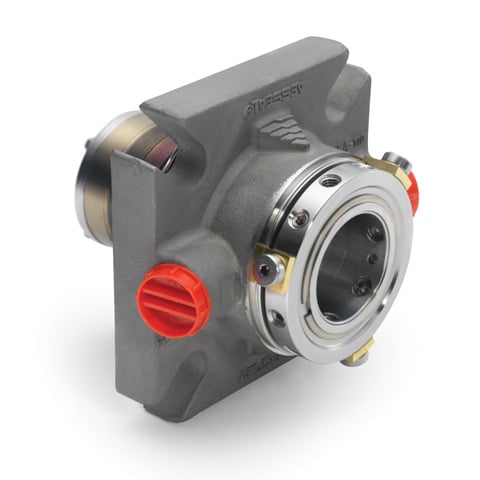

BDFI & BDFC

BDFI & BDFC

Bellows Double Flow Induction / Convection

The BDFI™/BDFC™ (Bellows Double Flow Induction/Convection) is an innovative modular hybrid design, created using the inboard design of a BQFD™ and the outboard design of a DMSF™.

Read More

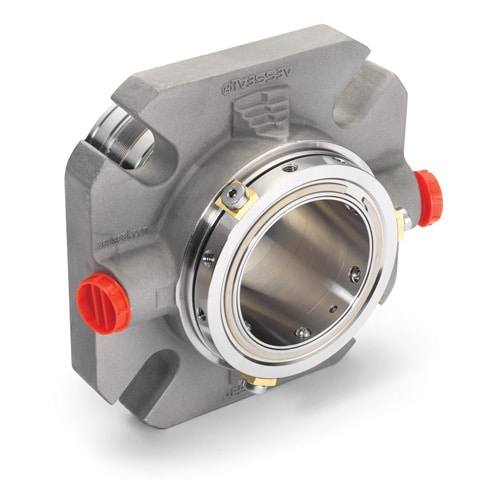

BDTP

BDTP

Bellows Double Seal

The BDTP™ (Bellows Double Tandem Pumping) is a highly-innovative hybrid design, modular to the BDFI™. The seal's directed barrier fluid flow path achieves optimum heat removal at both sets of seal faces.

Read More

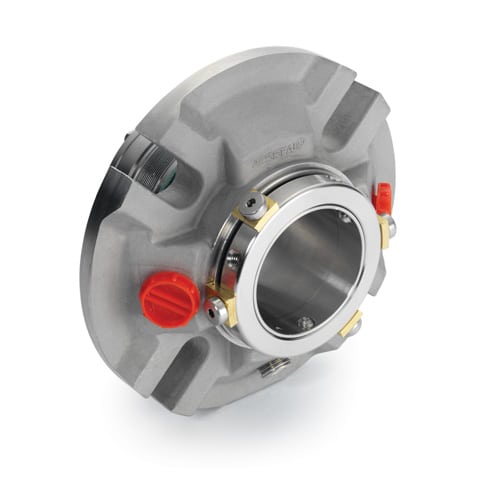

BQFD

BQFD

Bellows Single Cartridge Seal

The BQFD™ (Bellows Quench Flush Drain) range of single cartridge mechanical seals uses many of the same modular parts as a BSIV™

Read More

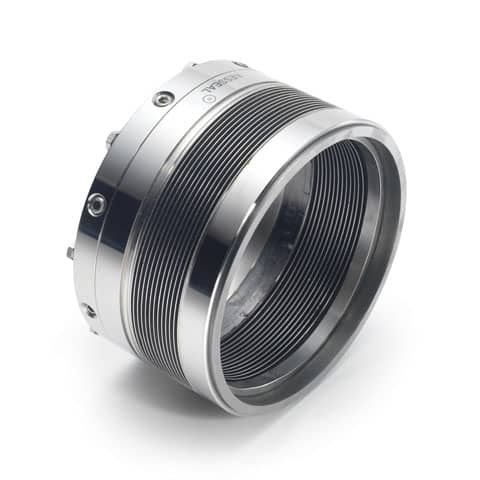

BSAI & BSAIG

BSAI & BSAIG

Bellows Component Seals

The BSAI™ range is available in a wide range of seal face and elastomer combinations, together with self-aligning, DIN, CURC™, T, L shaped or boot mounted stationaries.

Read More

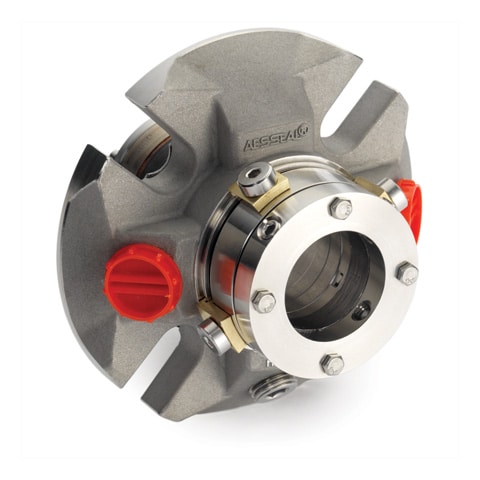

BSFG

BSFG

Bellows Single Full Graphite Cartridge Seal

The BSFG™ (Bellows Single Full Graphite) cartridge seal is specifically designed to eliminate the costly and often long lead-time issues of exotic elastomer compounds.

Read More

BSIV

BSIV

Single Bellows

The BSIV™ range of single cartridge mechanical seals has been designed as a value-for-money, high-performance sealing solution for general applications.

Read More

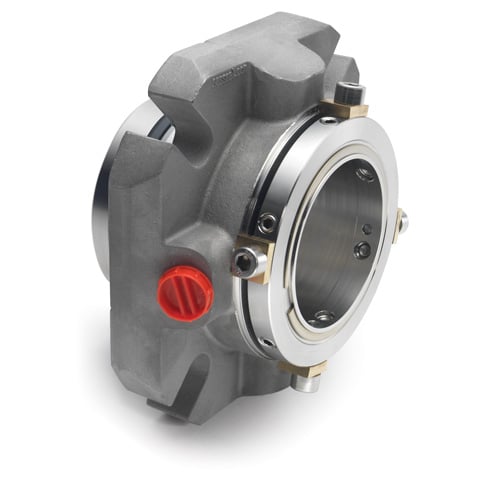

CDFI & CDFC

CDFI & CDFC

Double Mechanical Seal

The CDFI™ / CDFC™ bridges the product range gap between the CDSA™ and DMSF™ differentiating itself in two areas.

Read More

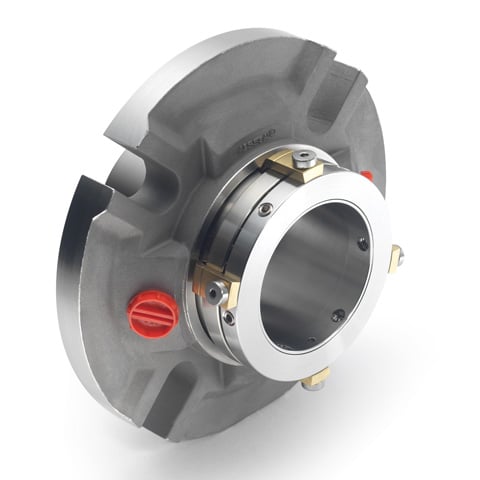

CDM

CDM

Cartridge Double for Mixers

The CDM™cartridge double mechanical seal for mixers is available in a wide range of seal face, elastomer and alloy combinations, to suit individual applications.

Read More

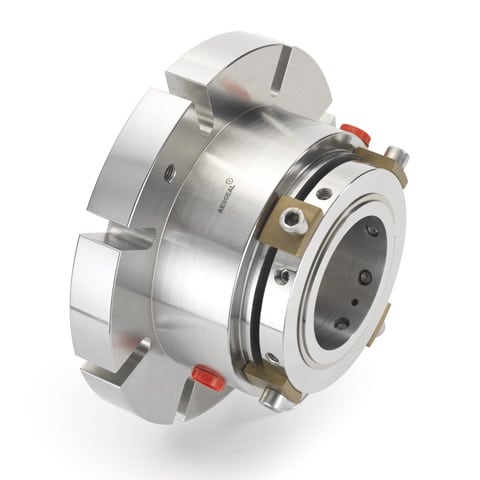

CDMSC

CDMSC

Canister Double Monolithic Stationary Convection

The CDMSC™ is designed specifically for Mixer, Agitator and Reactor applications. Based on the modular technology of the DMSF™, this externally mounted cartridge seal incorporates many design features to help increase seal life.

Read More

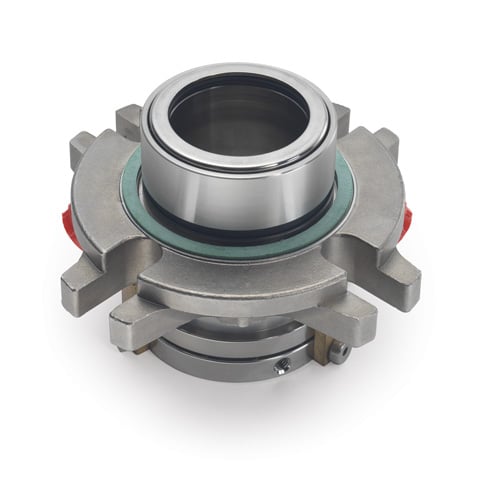

CDP & CDPN

CDP & CDPN

Double Mechanical seal

The AESSEAL CDP™/CDPN™ range of cartridge mechanical seals has been designed as high-performance sealing solutions for general applications.

Read More

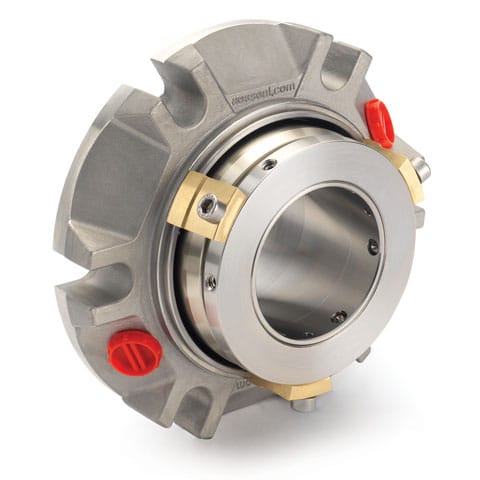

CDPH Slurry Seal

CDPH Slurry Seal

Heavy-Duty Double Slurry Seal

The CDPH™ double mechanical seal is designed to meet the arduous requirements of slurry applications. Large ports and increased radial clearances enable the seal to maintain a stable fluid film...

Read More

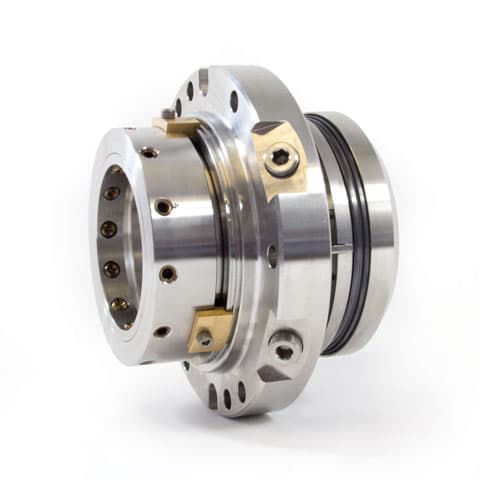

CFC

CFC

High Performance Mechanical Seal

These robust seals are designed for use on difficult applications, including oil pipeline pumping, water injection and boiler feed duties.

Read More

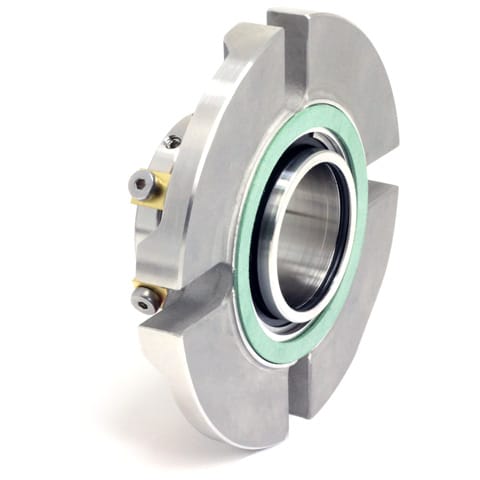

CLIP

CLIP

Process Protecting Seal

The cartridge lip seal is specifically designed for dry running applications where barrier fluid is not permitted to enter the process media.

Read More

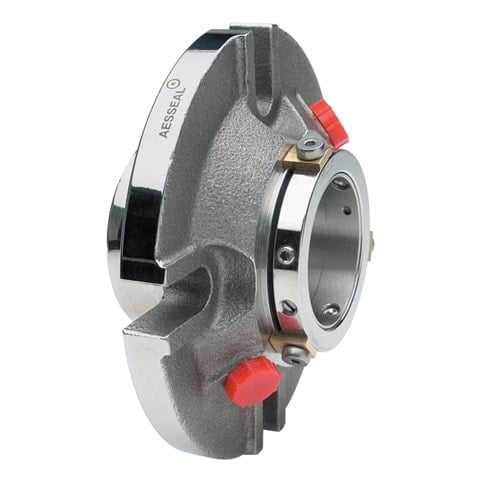

CMAX

CMAX

Single Cartridge Seal – Axial Movement

The CMAX™ is a single cartridge seal that allows for axial movement.

Read More

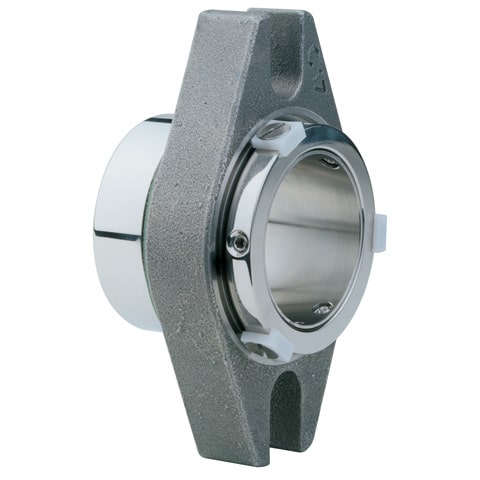

Convertor II

Convertor II

Cartridge Seal Designed to Replace Packing

Cartridge seal designed to replace two-part component seals and conventional packing arrangements.

Read More

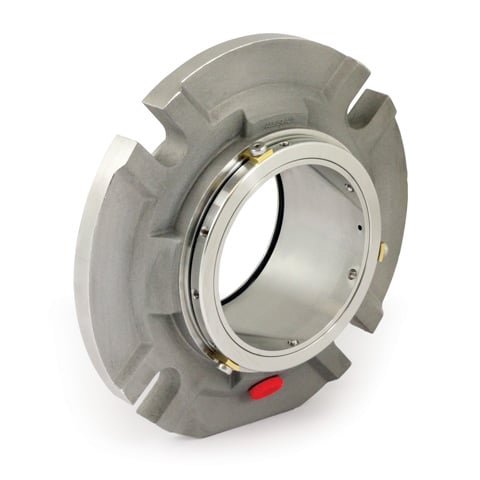

CSS – CSSN

CSS - CSSN

Single Cartridge Seal

The AESSEAL CSS™/CSSN™ range of cartridge mechanical seals has been designed as high-performance sealing solutions for general applications.

Read More

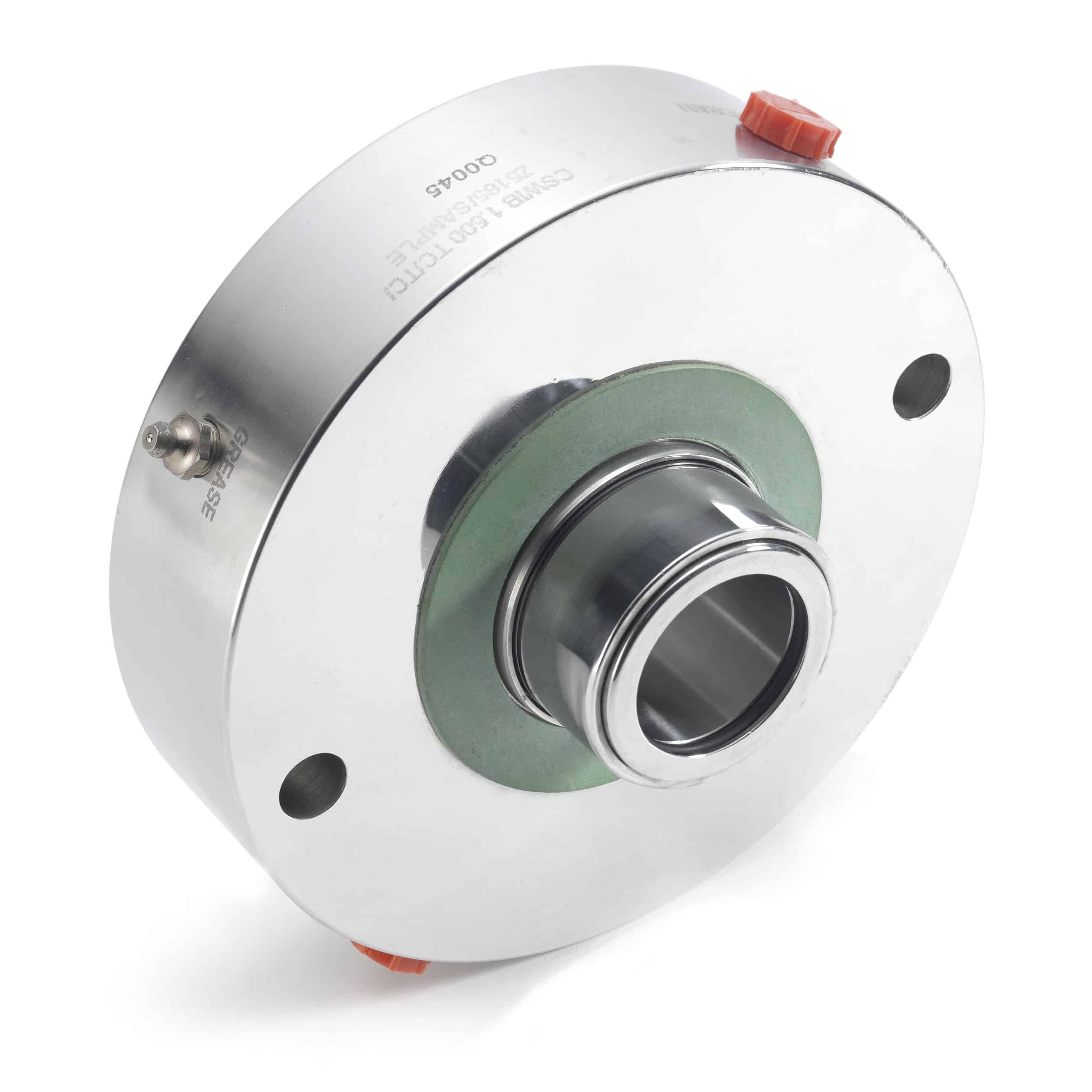

CSWIB (MIXMASTER-I)

CSWIB (MIXMASTER-I)

Cartridge Single with Integral Bearing

The CSWIB™ (Mixmaster I) is a single cartridge mechanical seal, with balanced seal faces and an integral (steady) bearing.

Read More

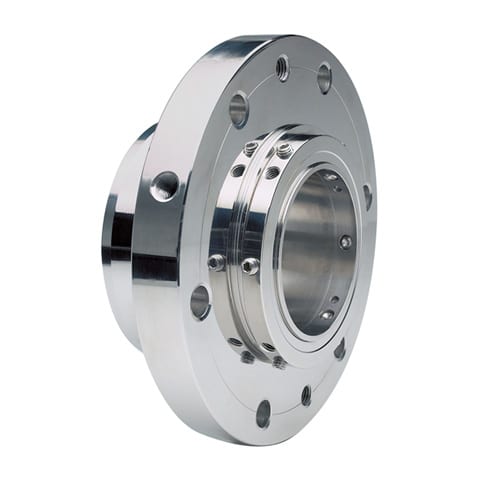

CVSD and CVSD-R

CVSD and CVSD-R

Cartridge Vulcanized Spring Disc Seal

The CVSD™ and CVSD-R™ mechanical seals are ideal for slurry applications. The seals are designed around AESSEAL® modular technology...

Read More

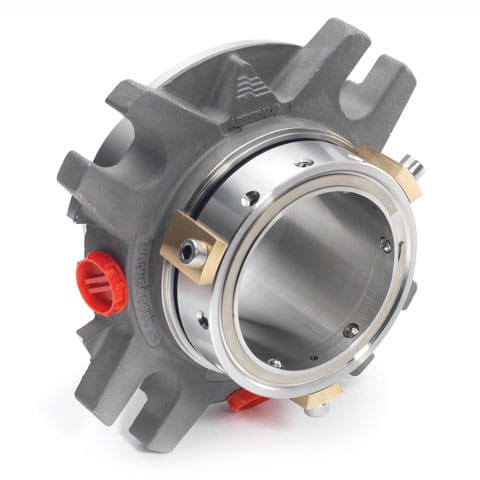

DISP

DISP

Double Stationary Seal with Pumping Scroll

The DISP™ range double stationary mechanical seals provide highly-technical, value-engineered sealing solutions applicable for all industry sectors. The seal incorporates an integral bi-directional flow inducer for effective seal cooling.

Read More

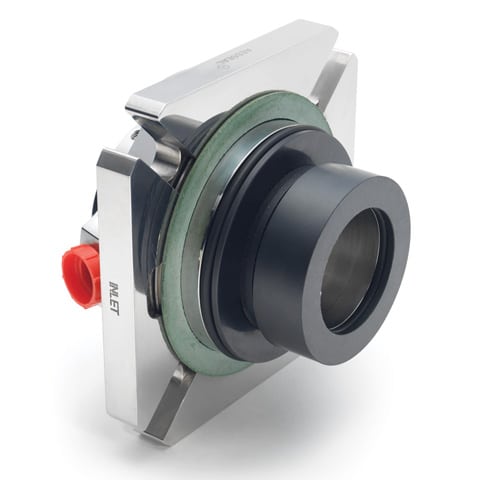

DSNM and FI-DSNM

DSNM and FI-DSNM

Non-Metalic Mechanical Seals

The DSNM™ is designed to suit the Flowserve Polychem 'S' Series non-metalic process pump.

Read More

DSWIB (MIXMASTER-II)

DSWIB (MIXMASTER-II)

Double Mixer Seal

The DSWIB™ (Mixmaster II) is a double mixer seal with integral bearing and concentric face design to reduce the seal's overall length.

Read More

ESM & NCM

ESM & NCM

External Mixer Seal

The AESSEAL ESM (external seal for mixers) is a unit external seal designed for ease of installation as the seal faces are clipped together and dispatched assembled in a leak-free state.

Read More

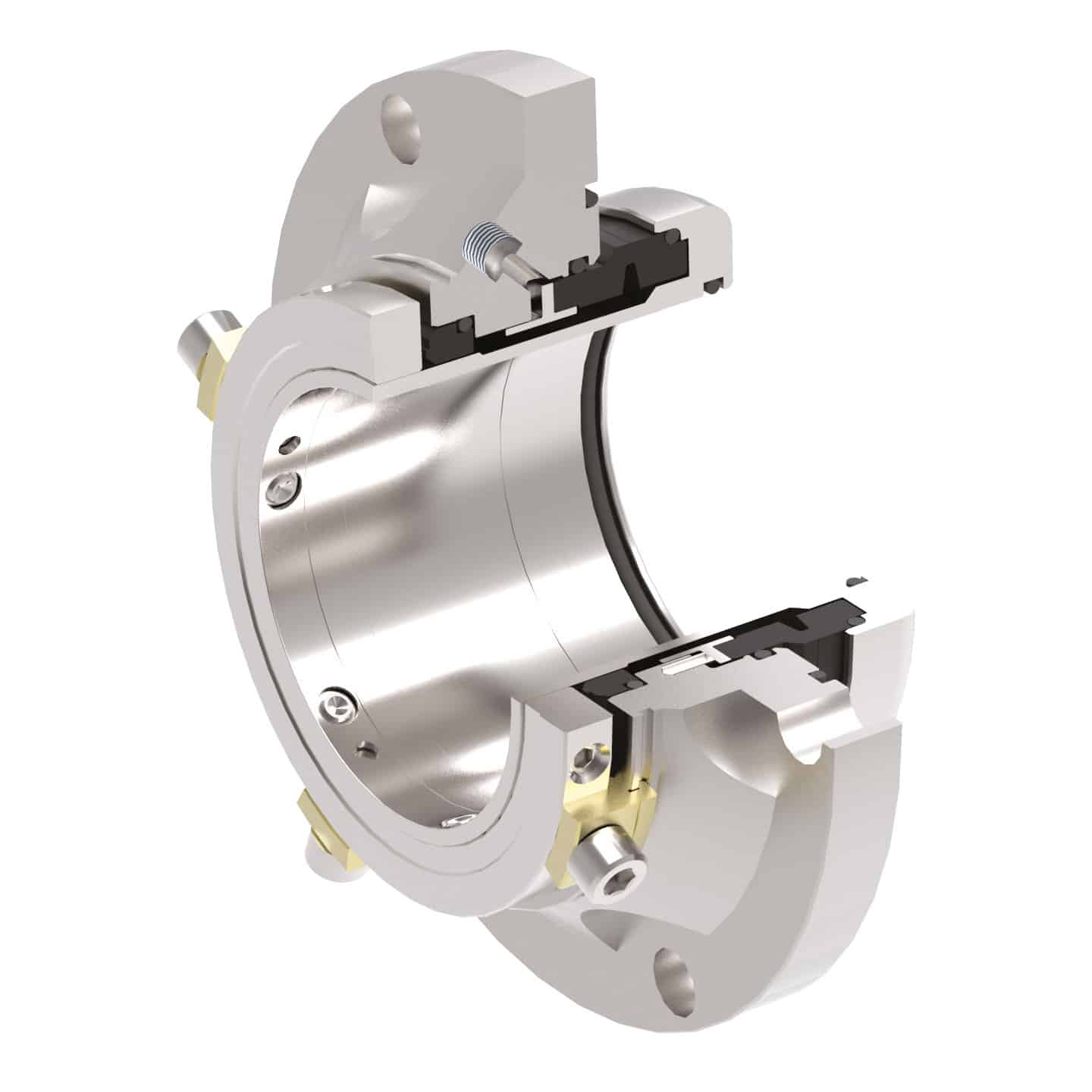

FGDSS

FGDSS

Flue Gas Desulphurization Seal

The FGDSS™ (Flue Gas Desulphurization Single Slurry) single mechanical seal is designed to seal Flue Gas Desuphutization (FGD) and general slurry applications.

Read More

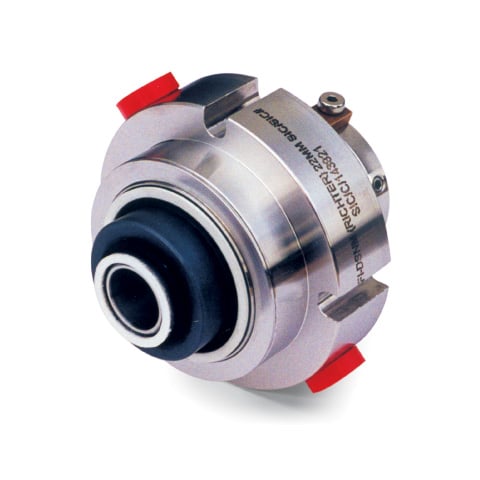

FI-DSNM-R

FI-DSNM-R

Richter PCK & SCK Seal

The FI-DSNM-R™ is designed to suit Richter (ITT-Goulds) PCK and SCK process pumps. This unique cartridge design eliminates the OEM ceramic sleeve.

Read More

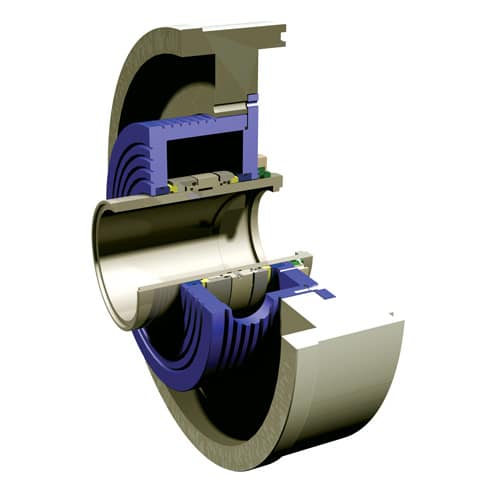

HDSS & HDDSS

HDSS & HDDSS

Heavy Duty Slurry Seals

The HDSS and HDDSS heavy duty slurry seals are designed for the arduous environment of the mining industry. The robust seals are built to withstand levels of pump vibration with large internal clearances accommodating levels of movement.

Read More

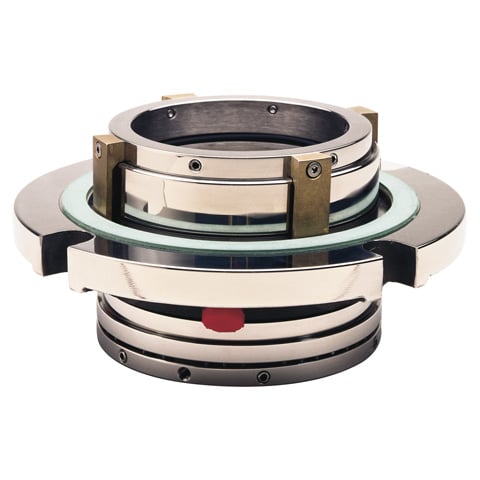

IADC

IADC

Pulp & Paper Double Screen Seal

The IADC™ Screen seal design is a double seal available in a wide range of seal face and elastomer applications to suit individual process requirements. This seal is used on screens and knotters.

Read More

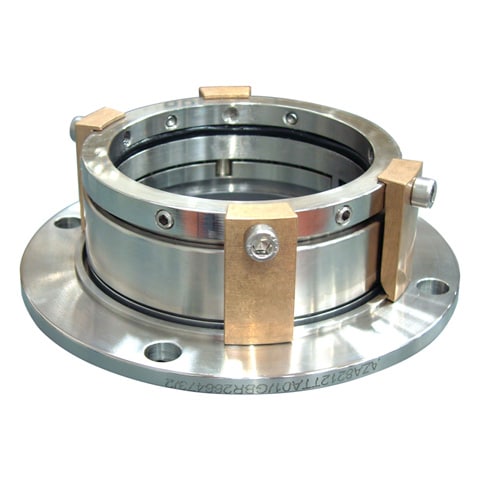

IASC

IASC

Pulp & Paper Screen Application Seal

This seal employs standard, modular, inventoried AESSEAL­­® components, with a seal gland, which retains fluid when the screen is emptied. This avoids dry running of the tungsten carbide seal faces on equipment start-up.

Read More

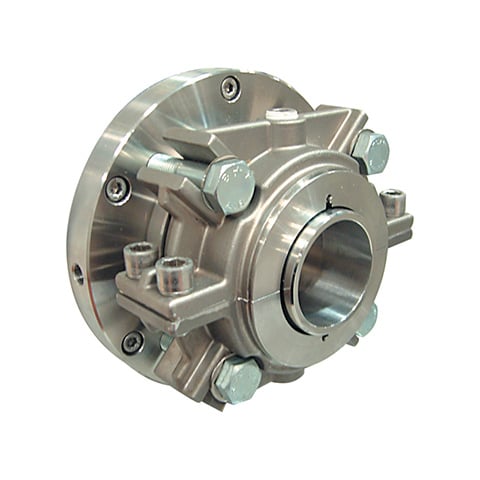

ISOS

ISOS

Inflatable Shut off Seal

The ISOS™ (inflatable shut-off seal) is fitted between the pump and and radially-divided seal, to form a separate seal when required, allowing the quick and easy removal of the mechanical seal.

Read More

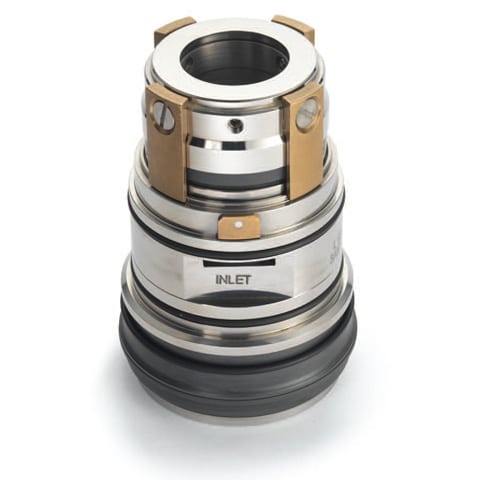

LSEAL

LSEAL

L-Series Seal

The LSEAL™ is designed to suit the Flowserve Polychem 'L' Series, Group I and Group II non-metallic process pumps.

Read More

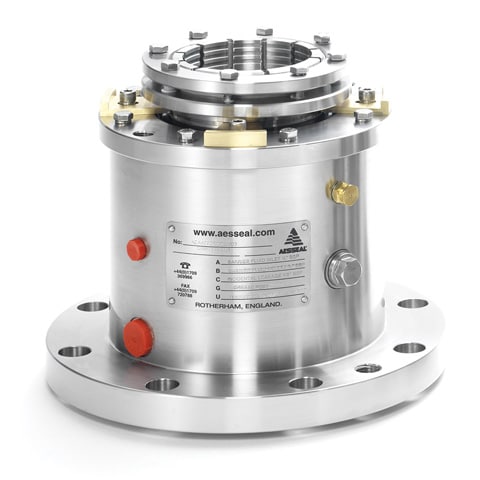

MIXMASTER Range

MIXMASTER Range

Modular Mixer Seal Range

Mixer, agitator and reactor applications vary from simple blending to solid dissolution to the more exacting standards of suspension, gas dispersion or containing/promoting chemical reactions.

Read More

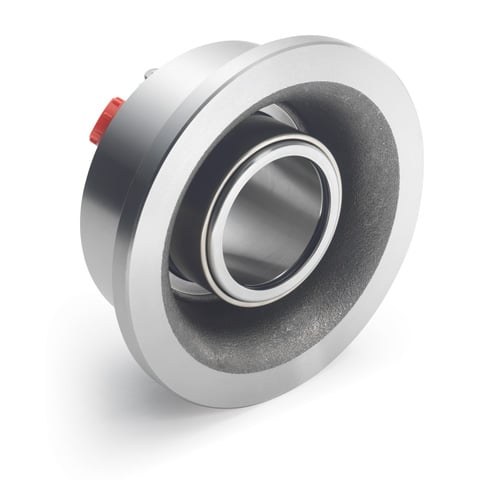

PCPS

PCPS

Progressive Cavity Pump Seals

The AESSEAL Progressing Cavity Pump mechanical seal (PCPS™) has been developed to incorporate proven modular designs from our highly-acclaimed range of single and double mechanical seals.

Read More

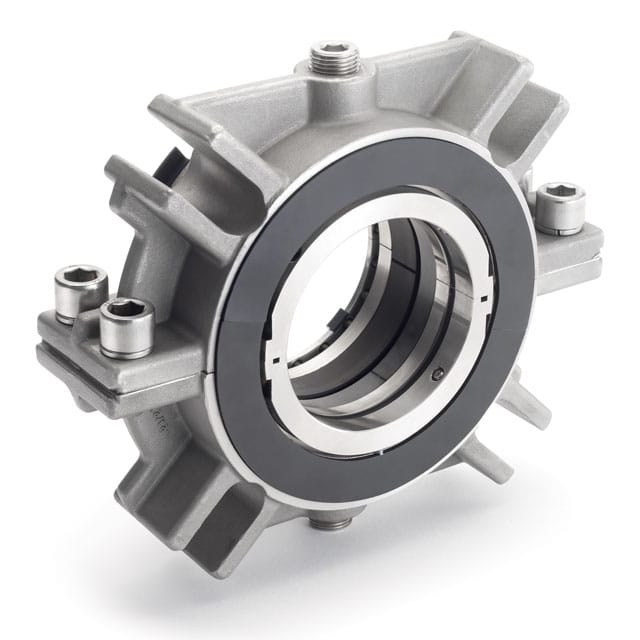

RDS

RDS

Split Seal

The RDS™ eliminates the need to remove or strip equipment for seal replacement. The unique design makes it the quickest to install two part seal currently available in the market place.

Read More

RDSF

RDSF

A split seal solution ideal for those difficult to reach applications

The RDSF has been developed after extensive research and customer feedback to increase the ease that the seal can be fitted correctly – first time.

Read More

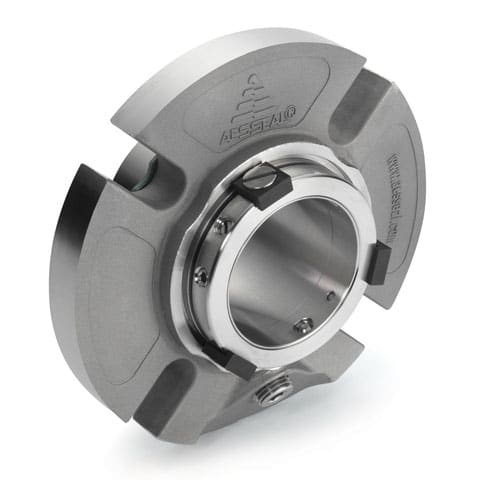

SCUSI

SCUSI

Short Cartridge Mechanical Seal

A short externally mounted cartridge seal, with flush ports and self-aligning faces.

Read More

SEA2 – SEH1

SEA2 - SEH1

Exotic Alloy Seal Range for Chemical Industry

The SEA2™ and SEH1™ range of cartridge single mechanical seals is specifically designed for the chemical industry. This Exotic Alloy range, offered in standard and ANSI+ configurations, is available in solid Alloy 20 and Alloy 276 materials.

Read More

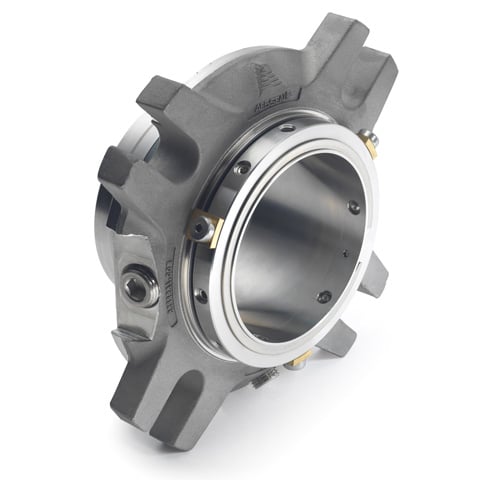

SISS & SISR

SISS & SISR

Single Stationary Mechanical Seals

Modular range of stationary cartridge mechanical seals for general applications in all industry sectors.

Read More

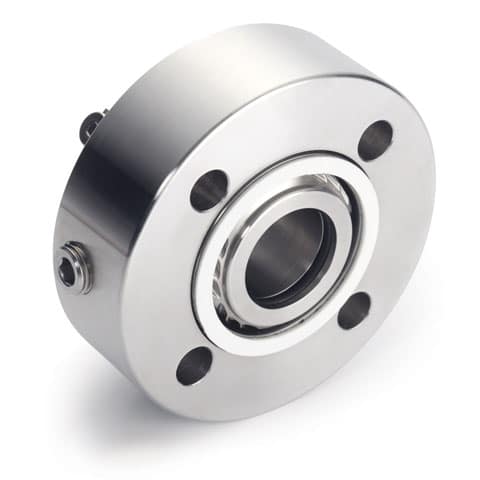

SMSS23

SMSS23

Plan 23 Single Stationary Seal

A single cartridge stationary seal with integral Plan 23. Coupled with a helicoil cooler, the seal provides the most efficient sealing solution for this piping arrangement.

Read More

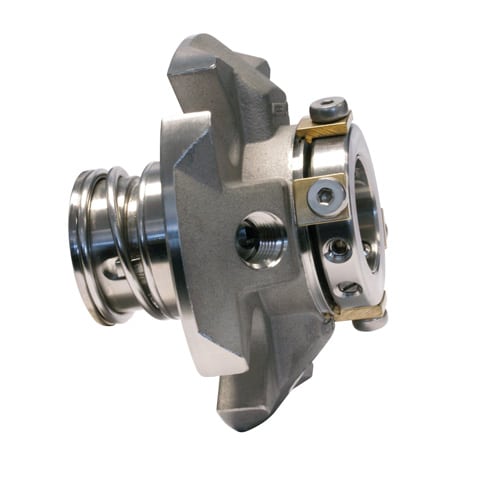

TPOC

TPOC

Single Spring Catridge Seal

The TPOC™ seal range is specifically designed for applications which benefit from the use of unbalanced seal face technology.

Read More

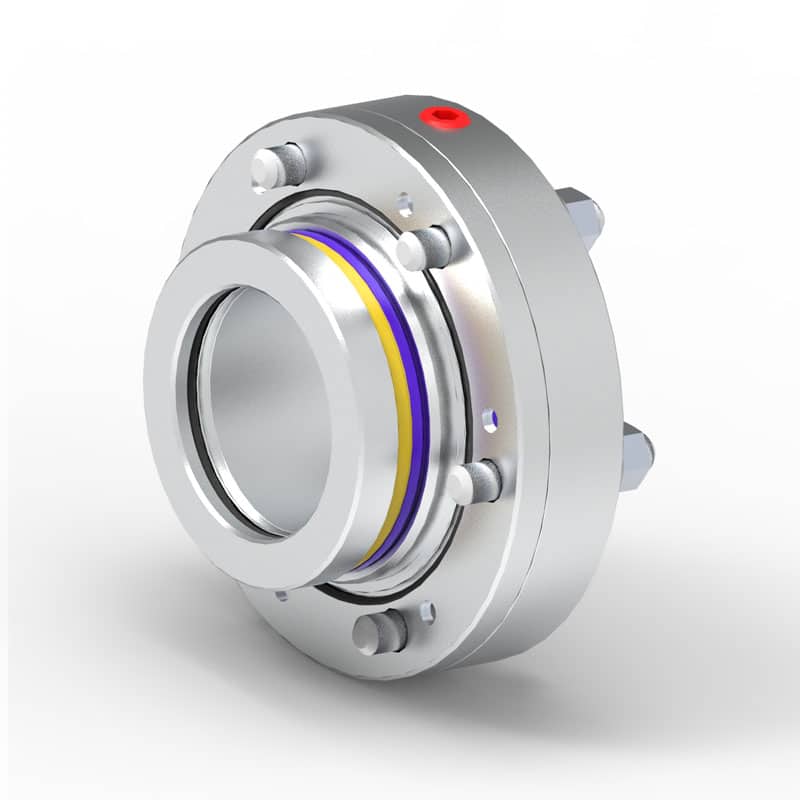

UHDDS

UHDDS

Ultra heavy duty double cartridge seal

The UHDDS™ – is a double cartridge seal particularly applicable for medium to heavy duty slurry sealing applications.

Read More
